Hydraulic Fixture

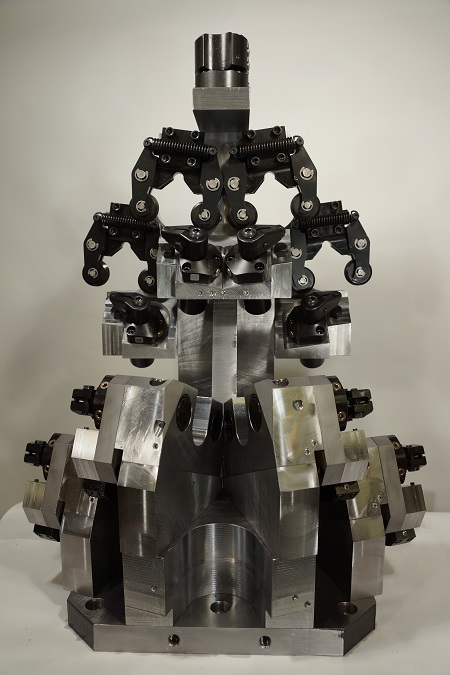

Hydraulic Clamping Fixture for HMC
  • Full 360° B-axis rotation
  • Clamping pressure 5000psi
  • All plumbing drilled internally
  • Pre-clamp retension
  • This fixture holds two right hand, two left hand workpieces - completing 4 parts in 1 operation
  • Top of workpiece has access front and rear
  • Sequencing first secures workpiece in upper v-block by applying upward force to lower v-block
  • Agressive dual cylinder arrangement and grippers in upper v-block
  • 3 main clamping cylinders per workpiece
  • 24 cylinders in all
